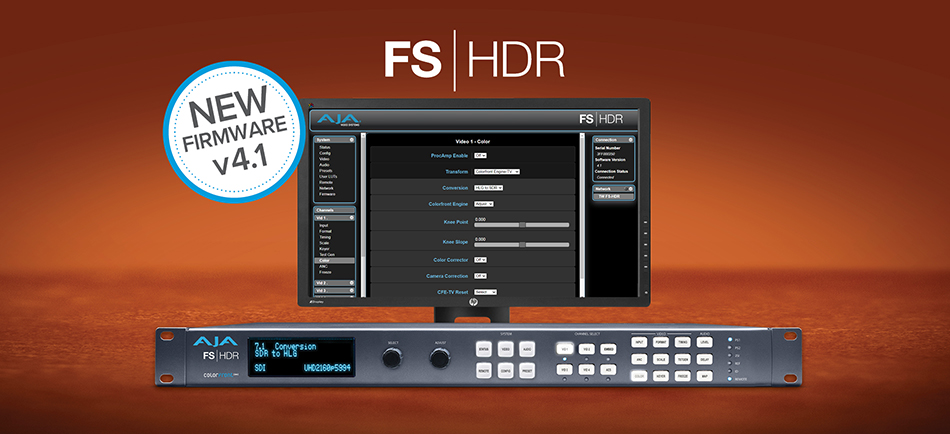

AJA Video Systems 为其强大的实时 HDR/WCG 转换器和帧同步器开发了 FS-HDR v4.1 固件升级版本。作为一个免费的固件更新其主要包括：将帧缓存深度从 6 帧增加到 20 帧、升级了 v1.5 BBC HLG LUTs、增加了全新的 NBCU LUTs、扩展了 CC 字幕支持、以及针对关键辅助数据的传递或转换功能——甚至在 FS-HDR 执行转换的同时也可实现此功能。


在疫情期间，由于现实和虚拟摄像机的广泛使用，使得现场制作所需的额外处理时间激增，视频源需要更长的同步周期。作为应对，FS-HDR v4.1 增加了设备的帧缓存深度，以支持最多 20 帧的可配置延迟。所有 FS-HDR 用户都可以免费使用这个更新，无需对硬件进行更改。


对于那些希望简化 HDR 工作流程并利用 BBC HLG LUT 开展工作的制作人员来说，FS-HDR v4.1扩展了对v1.5 BBC HLG  LUTs的支持。最新发布的v1.5 BBC HLG LUTs添加了两个新的LUT：用于SDR BT.2020转HLG BT.2100的直接映射和上映射转换；以及提升了HLG BT.2100 转 SDR BT.709 下映射转换显示光的色彩饱和度。


FS-HDR v4.1 还增加了对全新 NBCU LUTs 的支持，该 LUT 是由 NBC 环球传媒有限公司与 Cromorama 合作开发的，它使得单机同时制作 HDR 和 SDR 的工作流程具备更高的质量。NBCU LUT 包括 SDR、HLG 和 PQ LUT，在大限度地提高了 HDR 动态范围和色彩容量的同时，不影响核心 SDR 播出。


为了响应行业需求和用户反馈，FS-HDR v4.1 为各种格式和转换增加了辅助数据传递或转换功能。在需要使用 SCTE-104 标记进行广告插入的传输应用中，FS-HDR 现在将自动传递 SCTE-104 包。FS-HDR 的全新 Timecode Xlator 将传递或转换辅助时间码 (LTC、VITC1或VITC2)。此外，FS-HDR v4.1 还扩展了支持 CC (隐藏式字幕)传递的转换集。


简化您的HDR工作流程

技术参数

HDR/WCG Real Time Processor

  • HDR Conversions

    • HDR to HDR

    • HDR to SDR

    • SDR to HDR

  • Colorimetry

    • BT.709 and BT.2020

Video Processing Transforms

  • Each processing channel can independently select from:

    • Colorfront Engine - TV Mode

    • Colorfront Engine - Live Mode

    • Colorfront Engine - Film Mode

    • BBC HLG 3-D LUTs

    • NBCU 3-D LUTs

    • User 3-D LUTs

    • Dynamic 3-D LUTs

Colorfront Engine (CFE) Advanced HDR Conversions

  • Processing Based on Human Perception Model

  • Perceptually optimized color volume remapping

  • Preserves the original creative intent

  • Parametric controls including HDR functions and color corrector

  • TV Mode for applications such as television broadcast

  • Live Mode for applications such as broadcast, OTT, A/V

  • Film Mode for applications such as on-set camera preview and look creation

  • Input Video Dynamic Range/Color Gamut

    • SDR BT.709 100 Nits

    • SDR Extended BT.709

    • PQ BT.2020 1000 Nits

    • PQ P3D65 1000 Nits

    • Hybrid Log Gamma BT.2100

    • HLG Extended BT.709

    • HLG Extended BT.2100

    • Sony S-Log3 S-Gamut3

    • Sony S-Log3 S-Gamut3 Cine

    • Sony S-Log3 BT.2020

    • ARRI Log C Wide Gamut

    • Panasonic V-log

    • RED Log3G10 Wide Gamut

    • Canon Log 2

    • Canon Log 3

    • ACEScct (Film mode only)

  • Output Video Dynamic Range/Color Gamut

    • SDR BT.709 100 Nits

    • SDR Extended BT.709

    • PQ BT.2020 1000 Nits

    • PQ P3D65 1000 Nits

    • Hybrid Log Gamma BT.2100

    • HLG Extended BT.709

    • HLG Extended BT.2100

    • Sony S-Log3 S-Gamut3

    • Sony S-Log3 BT.2020

    • ARRI Log C Wide Gamut

    • ACEScct (Film mode only)

  • SDR Preview mode

  • Ambient Light Compensation control

  • PQ Output Nit level: 48-4000 Nit

  • PQ Output P3 Colorspace Clamp

  • Exposure, Color Temp, Tint controls

  • TV Mode controls

    • Highlight management: Knee Point, Knee Slope

    • Color Correction: Lift, Gamma, Gain, Saturation

    • Camera Correction: Exposure, Color Temp, Tint

  • Live Mode controls

    • Grading: Lift, Gamma, Gain,

    • SDR Softness control

    • ITU-R BT.2408 control

  • Film Mode controls

    • MasterLook

    • MasterBroadcast

    • MasterLookBright

    • MasterLookCool

    • MasterLookLowCon

    • MasterLookSoftColor

    • MasterLookVivid

    • MasterLookWarm

    •  MasterPastelD60

    • MasterPastelD65

    • Agfa

    • ARRI K1S1

    • Bleach

    • ClassicFilm

    • Ektachrome

    • FilmBlended

    • FilmBlendedLoCon

    • FujiDI

    • FujiXD

    • GenericFilm

    • Kodachrome

    • ReversalClassic

    • Grading space: LogC, ACEScct, or S-Log3

    • ACES CDL: Offset, Power, Slope, Saturation

    • A/B Look Selection

    • A/B Look Mix

BBC HLG 3-D LUT HDR Conversions

  • Mathematical dynamic range mapping per ITU-R BT.2408

    • SDR/BT.709 Scene Referred to HLG/BT.2100 v1.5

    • SDR/BT.709 Scene Referred to HLG/BT.2100 Strict v1.5

    • SDR/BT.709 Scene Referred UpMap to HLG/BT.2100 v1.5

    • SDR/BT.709 Scene Referred UpMap to HLG/BT.2100 Strict v1.5

    • SDR/BT.709 Display Referred to HLG/BT.2100 v.1.5

    • SDR/BT.709 Display Referred UpMap to HLG/BT.2100 v1.5

    • SDR/BT.2020 Display Referred to HLG/BT.2100 v1.5

    • SDR/BT.2020 Display Referred UpMap to HLG/BT.2100 v1.5

    • PQ 1000 Nits Display Referred to HLG/BT.2100 v1.5

    • PQ 4000 Nits Display Referred to HLG/BT.2100 v1.5

    • S-Log3/BT.2020 100% Scene Referred to HLG/BT.2100 v1.5

    • S-Log3/BT.2020 200% Scene Referred(SR-Live) to HLG/BT.2100 v1.5

    • HLG/BT.2100 to SDR/BT.709 Scene Referred v1.5

    • HLG/BT.2100 to SDR/BT.709 Scene Referred Strict v1.5

    • HLG/BT.2100 to SDR/BT.709 Display Referred v1.5

    • HLG/BT.2100 to SDR/BT.709 Display Referred Super White v1.5

    • HLG/BT.2100 to PQ 1000 Nits Display Referred v1.5



NBCU 3-D LUT Processing

  • NBCU LUTs developed by NBCUniversal Media, LLC

    • 1-NBCU_SDR2HLG_DL_v1, SDR UpMap to HLG using Display Light v1.0

    • 2-NBCU_SDR2HLG_SL_v1, SDR to HLG using Scene Light v1.0

    • 3-NBCU_HLG2SDR_DL_v1.1, HLG to SDR using Display Light v1.1

    • 4-NBCU_SDR2PQ_DL_v1, SDR UpMap to PQ using Display Light v1.0

    • 5-NBCU_PQ2SDR_DL_v1, PQ to SDR using Display Light v1.0

    • 7-NBCU_HLG10002PQ_v1, HLG 1000 Nits to PQ v1.0

User 3-D LUT Processing

  • Supports custom 33 point .cube format 3-D LUTs

  • Tetrahedral LUT interpolation

  • Configurable Colorspace, Scale, and HDR Transfer Characteristic

  • Nonvolatile storage of 10 fixed LUTs

Dynamic 3-D LUT Processing

  • Supports third party apps for automatic loading and display of 3-D LUTs

  • Reflects dynamic changes in real time from source software

  • Supported by Pomfort Livegrade Pro

  • Supported by TV Logic WonderLookPro

Modes of Operation

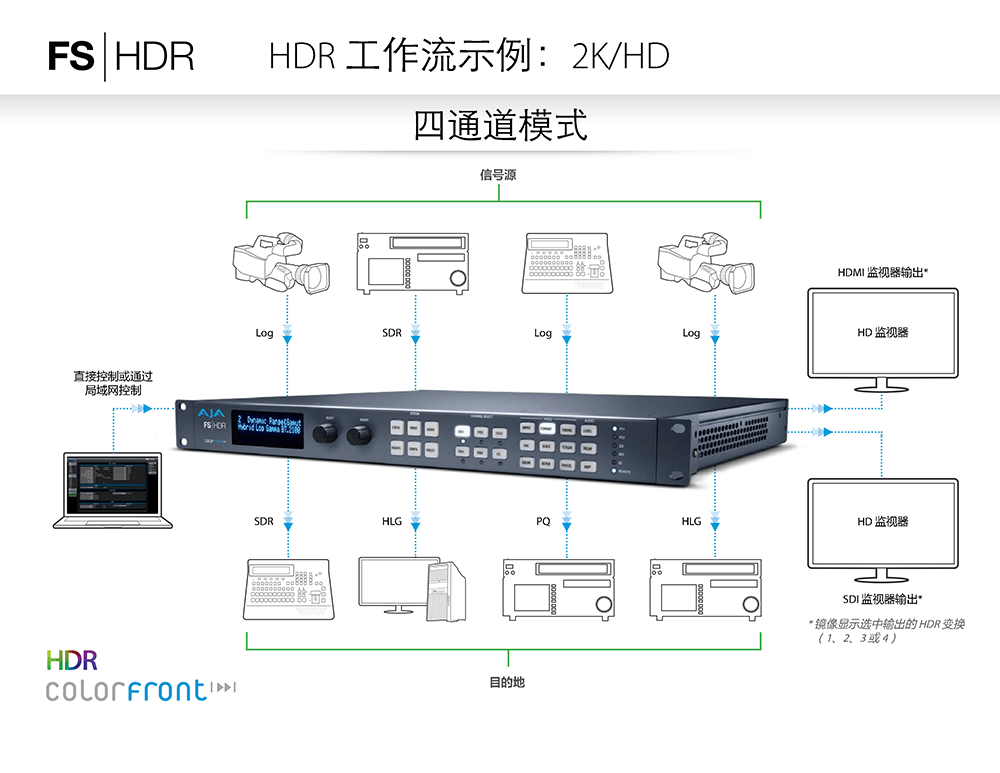

  • Four Channel Mode - Four Independent 2K, HD, or SD Video Processors

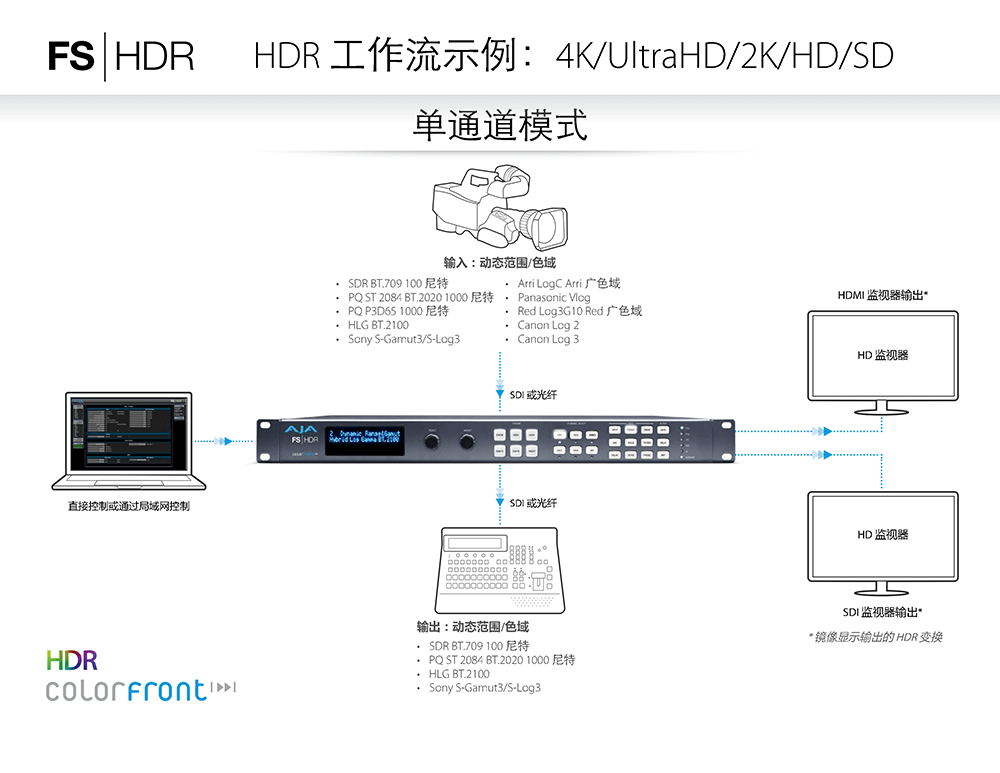

  • Single Channel Mode - One 4K, UltraHD, 2K, HD, or SD Video Processor

  • Enhanced Single Channel Mode - One 4K, UltraHD Video Processor with simultaneous 4K/UltraHD and 2K/HD/SD outputs

Video Formats

  • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

  • (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30

  • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

  • (UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30

  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

  • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

  • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30

  • (HD) 1920 x 1080i 50, 59.94, 60

  • (HD) 1280 x 720p 50, 59.94, 60

  • (SD) 625i 50

  • (SD) 525i 59.94

  • YCbCr, 4:2:2, 10-bit

Video Input Digital

  • 4x 3G-SDI inputs, 4x BNC

  • 4x 12G-SDI inputs, 4x Fiber or HD-BNC (optional SFP modules)

    • SFP coax module, 12G/6G-SDI, dual HD-BNC

    • SFP fiber module, 12G/6G-SDI, Single Mode, dual LC or single LC, SMPTE-297

    • SFP fiber module, 3G-SDI, Single Mode, dual LC, single LC, or single SC, SMPTE-297

    • SFP fiber module, 3G-SDI, Multi-Mode, dual LC or single LC, SMPTE-297

  • 12G/6G/3G/HD/SD, SMPTE-259/292/424/2081/2082

    • Single Link 12G/6G-SDI (with optional SFP module)

    • Quad Link 3G-SDI Level A or B-DL (4x 3G), SMPTE-425-5

    • Dual Link 3G-SDI Level B-DS (2x 3G), SMPTE-425-3

    • Single Link 3G-SDI Level A, B-DL, or B-DS, SMPTE 425

    • Quad Link HD-SDI (4x 1.5G)

    • Dual Link HD-SDI (2x 1.5G), SMPTE-372

    • Single Link HD/SD

  • Quadrant (Square Division) or 2SI (Two Sample Interleave) 4K/UltraHD input pixel mapping

  • 8x 1 selector feeds video processor(s)

Video Output Digital

  • 4x 3G-SDI outputs, 4x BNC

  • 4x 12G-SDI outputs, 4x fiber or HD-BNC (optional SFP modules)

    • SFP coax module, 12G/6G-SDI, dual HD-BNC

    • SFP fiber module, 12G/6G-SDI, Single Mode, dual LC or single LC, SMPTE-297

    • SFP fiber module, 3G-SDI, Single Mode, dual LC, single LC, or single SC, SMPTE-297

    • SFP fiber module, 3G-SDI, Single Mode, dual LC, SMPTE-297

    • SFP fiber module, 3G-SDI, Multi-Mode, dual LC or single LC, SMPTE-297

  • 12G/6G/3G/HD/SD, SMPTE-259/292/424/2081/2082

    • Single Link 12G/6G-SDI (with optional SFP module)

    • Quad Link 3G-SDI Level A or B-DL (4x 3G), SMPTE-425-5

    • Dual Link 3G-SDI Level B-DS (2x 3G), SMPTE-425-3

    • Single Link 3G-SDI Level A, B-DL, or B-DS, SMPTE-425

    • Quad Link HD-SDI (4x 1.5G)

    • Dual Link HD-SDI (2x 1.5G), SMPTE-372

    • Single Link HD/SD

  • Quadrant (Square Division) or 2SI (Two Sample Interleave) 4K/UltraHD output pixel mapping

Monitor Output Digital

  • Monitor Output is a copy of the Main Output

  • 1x BNC, 1x 3G-SDI output

    • Video Formats

    • Transforms

    • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

    • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

    • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30

    • (HD) 1920x1080i 50, 59.94, 60

    • (HD) 1280x720p 50, 59.94, 60

    • (SD) 625i 50

    • (SD) 525i 59.94

    • Colorfront Engine - TV Mode, select from 9 Conversions

    • Colorfront Engine - Live Mode, select from 10 Dynamic Range & Gamut settings

    • Colorfront Engine - Film Mode, select from 11 Dynamic Range & Gamut settings

    • BBC HLG LUTs, select from 17 LUTs

    • NBCU LUTs, select from 6 LUTs

    • USER LUTs, select from 10 LUTs

    • 3G-SDI/HD/SD, SMPTE-259/292/424, 10-bits

    • 4K/UltraHD automatically down-converted to 2K/HD

    • SDI Monitor Output is configurable when FS-HDR is operating in Enhanced Single Channel Mode

  • 1x HDMI, 1x HD output

    • 2K/HD/SD, HDMI v1.4a

    • 4K/UltraHD automatically down-converted to 2K/HD

    • HDR Infoframe generation to support HDR displays per HDMI v2.0b and CTA-861-G

    • Crop control

Video Processing

  • Motion adaptive deinterlacer

  • Proc amp controls

  • Color corrector

  • Legalizer

  • Frame rate conversion/film cadence removal/insertion (3:2, 1:2, 2:1, 2:3)

  • Adjustable delay 0-20 frames with H and V timing controls in lines and pixels

  • Freeze (manual or on input signal loss) to black or last good frame

  • Matte generator for background fill

  • Video test generator with SDR and HDR patterns

  • Nominal video delay HD/SD, 2 frames (LFR), 4 frames (HFR)

Ancillary Data

  • All embedded ANC packets pass-through when output format equals input format

  • Ancillary Timecode (LTC, VITC1, VITC2) translation and pass-through for wide range of conversions

  • SCTE-104 and Closed Captioning pass-through for wide range of conversions

  • Closed Captioning conversion (CEA-608/CEA-708)

  • AFD input detection, down-convert control, and output pass-through or overwrite

  • Configurable SDI output VPID for Colorimetry and Transfer Characteristic

Format Conversion

  • Convert any supported input format to any supported output format, within the same frame rate family. These three families are:

    • 59.94, 29.97, 23.98

    • 50, 25

    • 60, 30, 24

Scaling

  • Supported in 2K/HD/SD formats

    • Zoom in and out

    • Reposition

    • Region of Interest (ROI)

Up-Conversion

  • Hardware 10-bit

  • Zoom 14:9: results in a 4:3 image zoomed slightly to fill a 14:9 image with black side bars

  • Zoom Letterbox: results in image zoomed to fill fullscreen

  • Zoom Wide: results in a combination of zoom and horizontal stretch
    to fill a 16:9 screen; this setting will introduce a small aspect ratio
    change

Down-Conversion

  • Hardware 10-bit

  • Anamorphic: fullscreen

  • Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved

  • Crop: image is cropped to fit video output format

Aspect Ratio Conversion for SD to SD

  • Letterbox: Transforms SD anamorphic material to a letterboxed image

  • H Crop: Produces a horizontally stretched effect on the image; transforms anamorphic SD to full frame

  • SD Pillarbox: Produces an image in the center of the screen with
    black borders on the left and right sides and an anamorphized image in
    the center

  • V Crop: Transforms SD letterbox material to an anamorphic image

Audio Input Digital

  • 48 kHz sample rate

  • 8x SDI embedded inputs (16-Channels each)

    • 128-channels, 24-bit (20-bit SD), SMPTE-272/299

  • 8x balanced AES inputs (16-Channels), 1x DB-25

    • 16-channels, 24-bit, AES-3

  • 2x MADI inputs, 1 BNC, 1x ST Fiber

    • 128-channels, 24-bit, AES-10

Audio Output Digital

  • 48 kHz sample rate

  • 1x SDI embedded output per Video Processor (16-Channels each)

    • 16-channels (in single Video Processor mode), 24-bit (20-bit SD), SMPTE-272/299

    • 64-channels (in four Video Processor mode), 24-bit (20-bit SD), SMPTE-272/299

  • 8x balanced AES outputs (16-Channels), 1x DB-25

    • 16-channels, 24-bit, AES-3

  • 2x MADI outputs, 1x BNC, 1x ST Fiber

    • 128-channels, 24-bit, AES-10

Audio Processing

  • 277 x 208 mono audio matrix, route 1 to 1, 1 to many

    • Inputs:  128 embedded, 16 AES, 128 MADI, 2 stereo mixdowns, 3 tone generator

    • Outputs (Four Channel Mode): 16 AES, 128 MADI, 64 embedded

    • Outputs (Single Channel Mode): 16 AES, 128 MADI, 16 embedded

  • Input adjustment controls for each channel

    • Gain +18 to -18 dB in 0.5 dB steps

    • Phase invert

  • Input adjustment controls for each channel pair

    • Delay -16ms to +1sec in 20.8 us steps

  • Audio delay can automatically follow video timing delay adjustments

  • Two independent 5.1 or 7.1 to stereo mixdown processors with gain adjust

  • High quality Sample Rate Conversion supported on all audio inputs

  • SRC bypass for non-PCM audio (e.g. Dolby E, AC-3, etc)

  • Audio tone generator (mute, 400 Hz, 1 kHz)

Reference Input

  • External, 2x BNC

    • Looping, nonterminating

    • Blackburst or tri-level sync

Genlock

  • Lock to External Reference

  • Lock to SDI input 1 thru 8

  • Free run based on Temperature Compensated Crystal Oscillator

Network Interface

  • 1x RJ-45, 10/100/1000 Ethernet

  • Embedded web server for remote control

  • REST Interface

  • SNMP

User Interface

  • Display

  • Keypad with status LEDs

  • Two rotary/push knobs

  • Comprehensive alarm indicators

FS-HDR Control Link Application

  • Real time remote control of Colorfront Engine Parameters (Live Mode only)

  • Supports Tangent Kb USB 12 knob panel

  • Ganging feature provides simultaneous control of multiple FS-HDRs in Single Channel Mode

  • Enables 8K HDR transform pipelines when controlling 4x FS-HDR simultaneously

Presets

  • Four Channel and Single Channel Mode each support 40 system level Presets

GPI

  • 1x 25-pin D-Connector

    • Four optically isolated GPI inputs

    • Four optically isolated GPO outputs

Size (w x d x h)

  • 17.5” x 16.0” x 1.75” (1RU) (444.5 x 406.4 x 44.45 mm)

Weight

  • 7.9 lb (3.6 kg)

Power

  • 100-240 VAC 50/60 Hz (Dual, redundant power supplies), 55W typical; 70W max.

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)

  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)

  • Operating Relative Humidity: 10-90% noncondensing

  • Operating Altitude: <3,000 meters (<10,000 feet)


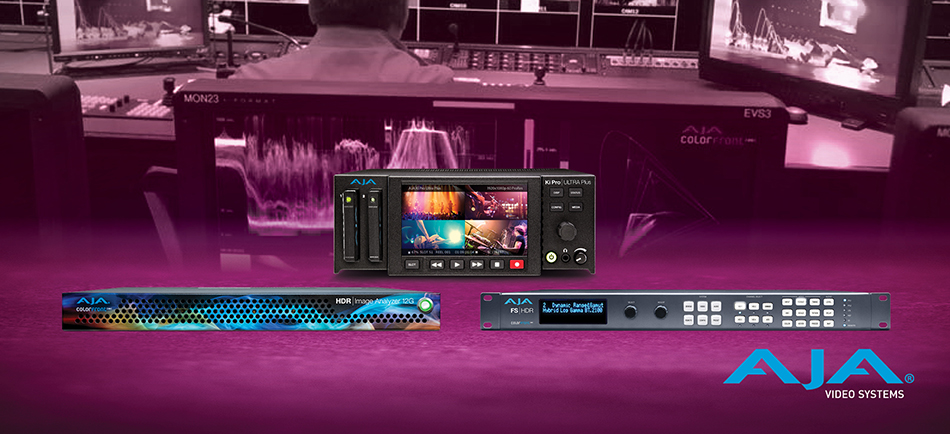

工作流程


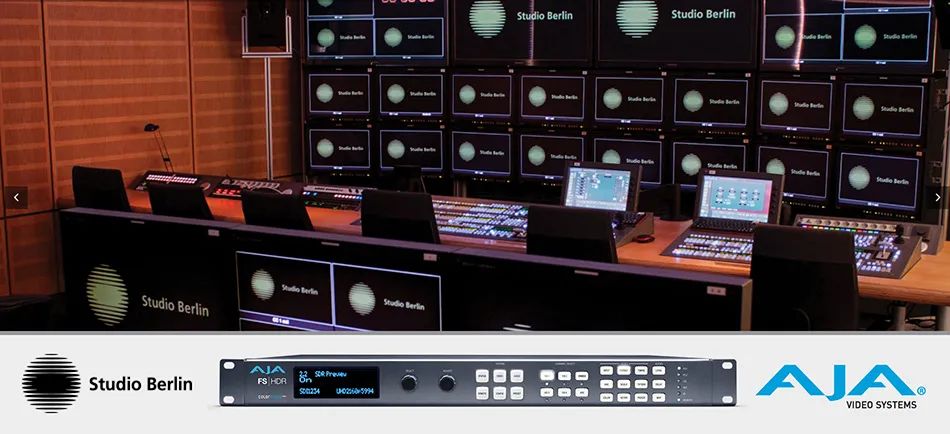

用户案例

世纪汉唐利用 AJA 技术简化 4K HDR 制作流程
